The product provided by the company is a device that automatically records various wired and wireless call records in a control room that protects people's safety and property in case of an emergency such as a disaster/national security. The advantages of this product are-

1. The first fault-tolerance design reflecting product in Korea and abroad
- Designed by integrating parallel process circuits on a single board
- Designed integrated parallel circuits with EMC in mind.
(Electromagnetic Compatibility)
- Even if a defect occurs in the 1st process, the recording function is performed by 2nd process.

2. Hardware structure considering the minimization of failure response time
     - The modules that is about 70% of board failure causes is designed detachable structure
     -  It can be responded rapidly to failure by replacing only faulty module immediately in the field.
     - Innovative reduction cost by replacing only faulty module instead of replacing the entire board like as existing product.

3. Error recording file occurrence rate 0%
- Creates an error file with missing packets in the recording process by Radio wave disturbance occurred in the communication environment
- Software Engine detect the error in real time during recording file creation process. And the error file is recovered through the temporary storage data of the recording board.
- It can be only checked errors through play the recording file at post-mortem in case of existing products.

4. Enhance Performance that is analyzing situation in post-mortem without special Hardware.
- Equipped with software engine that mix multi-channel audio into one file without separate H/W
- Strengthen the efficiency of the post-mortem situation analyzing by listening simultaneously to multi-channel audio based on time frame.

5. Innovative Cost Reduction.
- 26% cost reduction in system redundancy construction. (based on 80ch)
- Max 87% cost reduction in handling of module failure

The Model name of device is “AnyRec Master”.

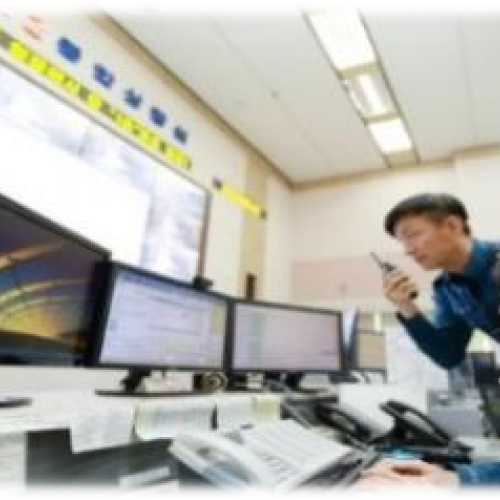

The device records automatically various wired/wireless calls that is occurred in the situation (control) room, which serves as a control tower for public safety and property protection in case of emergency such as disaster/national security. Ultimately the device provides recording data for analyzing post-mortem situation and uncovering the truth.

< system schematic>

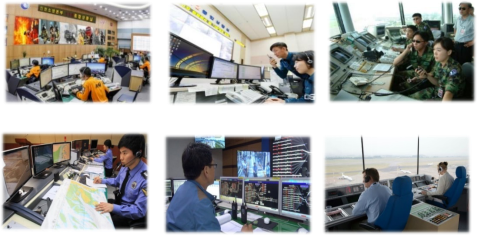

The main consumer is as below;
-Police, fire stations, the Coast Guard and Marine Traffic Control Center
-Railroad, Urban Railroad, City Gas, Electric power company
-Airport Corporation, port corporation, Road Traffic Corporation
-Army, Navy, Air Force Operation Situation Room

The specification is as below;

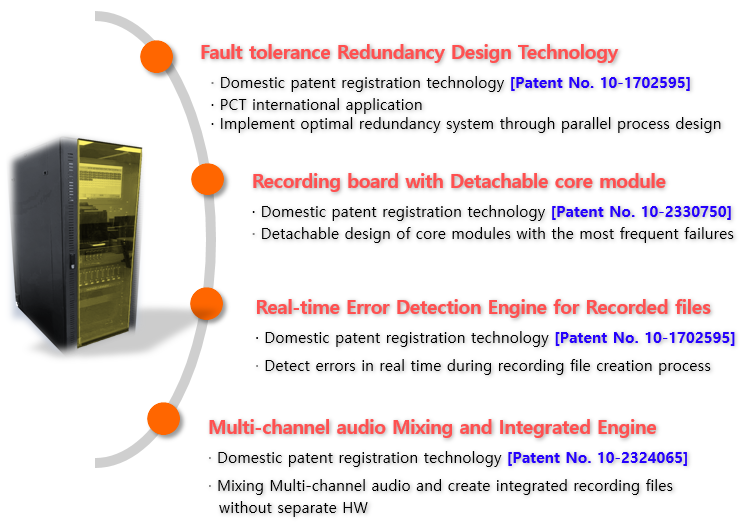

The Core technologies are as;

The feature is 5 like as below;
1.The optimal Fault tolerance Design
Considering the purpose of use of the recording device, the stability and reliability of the recording file are very important, so the customer is demanding redundancy, and accordingly, the advancement of the redundancy technology is necessary.

Most other companies' products consist of simple multiple analog recorders and servers to establish redundancy. In this case, there is a problem in that the construction cost rapidly increases due to the simple multiple recording units accounting for 50% of the total price of the recording device on the basis of 80ch.

Our product reflects the parallel process integration design on singular recording board  in consideration of EMC. In the event of a failure of the first process, fault-tolerance is implemented in which the function is normally performed as the second process. Redundancy construction cost is greatly reduced by about 24% compared to other products based on 80ch.

2.Structure that can respond quickly to failure

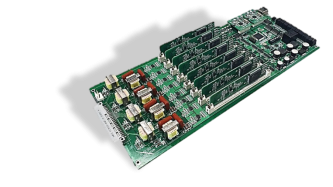

By designing the core module in a detachable structure, which accounts for about 70% of the failure causes of the recording board,
- In the event of a failure in the recording board, the module can be  removed at the site, and the failure can be quickly responded to by checking bug and replacing the module.
     - Unlike other companies’ products that replace the entire recording board, replacement costs can be reduced by up to 87% by replacing only the faulty module.

3.Error of Recording file is 0%
Most Recording device is installed in the communication room of the situation room, and external radio disturbance frequently occurs in the communication room environment. This causes a temporary system error, resulting in an error in which packets are dropped in the process of creating a recording file.

Other companies’ products do not have a special error detection method, which causes one of the following problems.
- It is impossible to systematically check for errors before the administrator plays the recorded file as needed.
- There is a serious legal problem, namely, the loss of the recording file for the subsequent reading of the situation, that is, the evidence material.

To solve this problem, our product is equipped with an engine that reflects technologies such as voice source Fourier transform and voice level deviation analysis. Detects/alarms errors in real time in the process of creating a recording file, and immediately checks for errors in the system. In addition, it creates a normal recording file through the temporary saved data related to the error file.


4.Enhance the Situation analysis Performance
In the situation room, in the process of handling the received case, related calls from multiple channels occur simultaneously, In order to accurately and efficiently analysis the situation of this incident in post-mortem, the performance that  listen to the recording files of multiple channels  based on time simultaneously is required.

Other companies' products do not have a special multi-channel simultaneous listening method, and this has the following problems.
By listening to the recording files of multi-channel separately for analyzing the situation, It has difficult to read the situation accurately. In fact, customers such as subway transportation institute and airports are implementing the simultaneous listening function by building separate equipment.

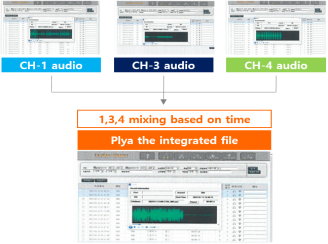

To solve this problem, our product is equipped with a Multi-channel audio Mixing Engine. Create an integrated file by mixing multi-channel audio based on time without a separate device. Through the integrated file, you can listen to multiple channels of audio at the same time based on time, and the efficiency of analyzing situation in post-mortem has been strengthened.

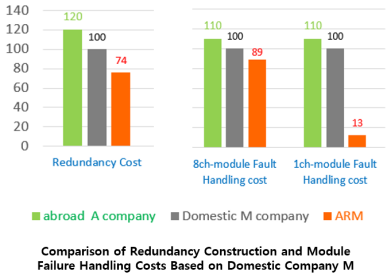

5.Innovative Cost Saving
26% cost reduction in system redundancy construction (base on 80ch)
Max 87% cost reduction in handling of faulty module

Commercial agreement with technical assistance
