Currently the market of lead tab film is dominated by Japan, a Korean SME has developed the product with more reasonable prices while producing the same quality and the product has been recognized for its excellence after a rigorous process of safety testing for more than six months from Chinese battery manufacture factory.

The competitiveness of the product is the synthesis ratio of film-making materials. Unlike existing lead tap film companies, a SME has different manufacturing technology that forms a multi-layer structure without using adhesives. Reasons for multi-layer structure.

- Center layer (pressure and hydrofluoric acid gas cut-off caused by internal electrolytes when battery current flows) – material should be dense.

- Skin layer (completely sealed between metal and pouch heterogeneous materials) – should be highly adhesive

There are several types of lithium ion batteries on the market such as pouch type, square type and cylindrical type, particularly the film is used for pouch type battery. Manufacturing pouch battery is required a high level of bonding technology because both sides of the film are in contact with Al(aluminium) and Cu(copper) metals respectively. However the key technology from Korean SME enables bonding of different materials and ensures high tensile strength of joints without causing heat deterioration.

Lead tab film is not just a film but a key material that secures stability of lithium-ion battery. If the film does not function properly, the battery may explode due to the sealing problem.

The lithium-ion battery is consisted of cathode & anode, electrolyte, lead tab and pouch which is packing material. The lead tab provides an electrical connection of the lithium-ion battery’s cathode & anode plates to the outside. The role of the film is to seal the lead tab and pouch.

The films produced by Korean SME is sorted of three-color literary(light yellow) type, gray type, black type, all of three-color films have different features that literary is specialized insulation and safety without layer-by-layer delamination, gray is designed for large size battery such as EV(Electronic vehicle) and ESS(Energy Storage System) and black can be widely used for electronic components and power electrical devices.

Characteristics of Lead tab film:

Dimension

- Films with various thickness and width are available.

- Standard thickness is 0.1mm.

- Typical film thickness from 0.055 to 0.15mm.

Film characteristics

Since both sides of film have same characteristics, they can be used interchangeably as metal adhesive and lamination layer for Al pouch.

Product SPEC of lead tap film

- Extruded Product : 700 mm width × 215 m length

- Slitting Small Product : 175 mm width × 210 m length

- Slitting Completed Product: Actual width of use (3.5mm to 15mm) × 200 m

(The length is about 80um, 100um and 150um are wrapped in 200m, and 55um is wrapped in 400m.)

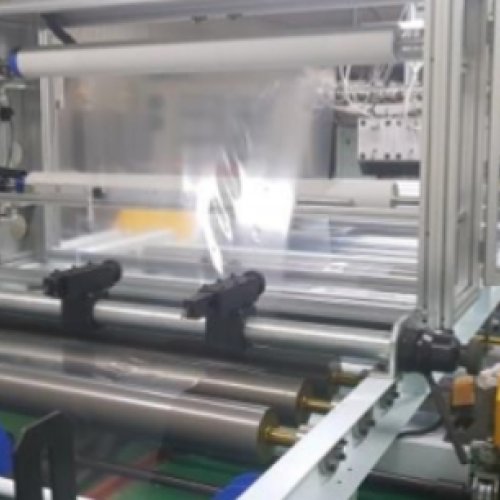

A Korean SME has the technology and equipment for producing the lead tap film, looking for partnership under distribution services agreement for entering EU market.

The Korean company wishes for their potential partners to promote their products in the European market as a distributor or as a sales agent. Partners should have connections to wholesale business or major retail business, and also be capable of promoting their product through relevant market channels. It is desirable that the partners are well-acquainted with the battery industry and knowledgeable about the most efficient way to access the market. The partners should ideally have knowledge on the EU market.
